Fra:
Eurolite

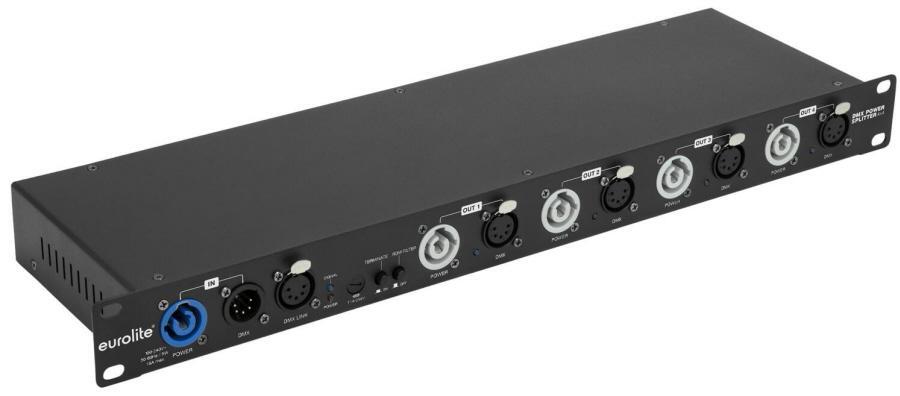

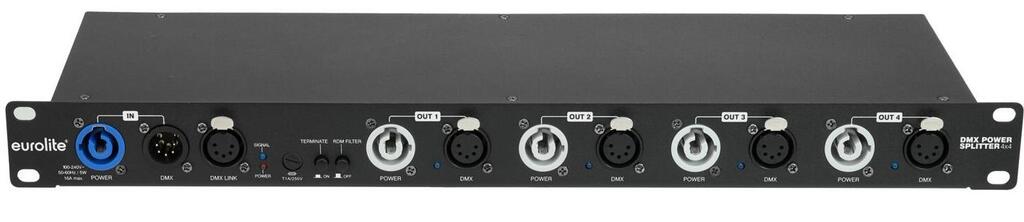

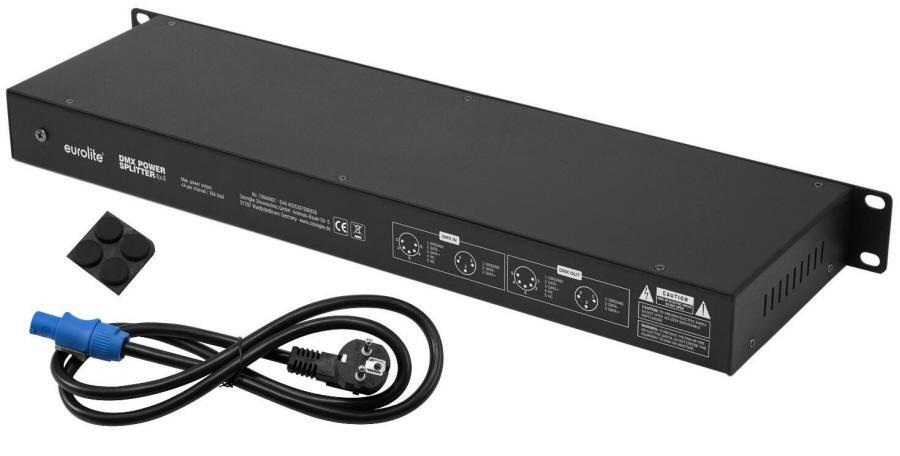

Eurolite DMX og power Split 4X 5-pin
1.270,00
m/Moms
(
1.016,00
u/Moms
)
4- gange dmx- og powercon splitter med RDM til rack-montering. 5-pin DMX udgange
Lager:
På lager
På lager
Model/varenr.:
70064807
- 1 P-Con input to 4 outputs, max. 16 A
- 1 DMX input to 4 outputs
- 1 DMX feed-through output
- Switchable RDM filter mode
- Switchable termination resistor
- Input and outputs galvanically isolated
- (19") 48.3 cm rack installation 1 U
- Each DMX output with independent driver and status indicator
- Control via RDM
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 5 W |
| Output current: | Max. 4 x 4 A per channal |
| Power connection: | Via P-Con (blue), mounting version |
| Power output: | 4 x P-Con (gray), mounting version |
| DMX input: | 1 x 5-pin XLR (F) |
| DMX output: | 4 x 5-pin XLR (F) with independent driver and status indicator |
| Control: | RDM |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48.3 cm Depth: 13.8 cm Height: 4.3 cm |
| Weight: | 2.34 kg |
