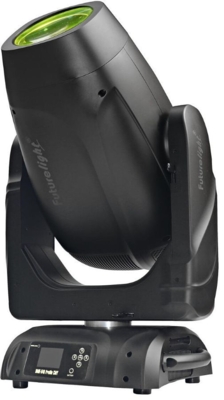

Futurelight DMH-640 Profile CMY Moving Head Spot
Ring for pris
41604225
Profil spot Moving Head med 640W COB LED lyskilde. Motoriserede knive. Stort zoom område. CMY og CTO farve mix og animations hjul
Lager:
På lager
På lager
Model/varenr.:
51841990
- 1 powerful LED 640 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN, 260° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Exact 16 bit resolution at Dimmer, zoom, focus, gobo rotation
- Prism 4-fold rotating; iris; frost filter linear; zoom motor driven; focus motor-driven; animation wheel; shutter blades motor-driven
- Pulse-width modulation variable
- CMY+CTO color mixing for indefinite color variations
- Color wheel with 8 dichroic filters plus open
rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobo indexable
- Slot-in gobo system for easy gobo replacement
- Gobo wheel with static gobos, 8 gobos and open
shake effect - The device is cooled by temperature-controlled fan at the head; temperature-controlled fan at the base
- Control via stand-alone; master/slave function; DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); CRMX by LumenRadio upgradeable; W-DMX by wireless solution via USB (optional)
- Flicker-free
- With a beam angle of 10° - 47°
- Good color rendering index (CRI)
- With omega bracket
- Multicolor LCD display,
with battery buffering for easy controlling upgradeable - For application areas such as: Wedding/gala/events; stage; theater; rental; Trade fair and shop fitting; video and photography
- Very quiet working noise
- Application possibility: Standing; suspended
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 750 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Device fuse: | 6.3 x 32 mm, 5 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 640 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 260° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 1 - 16 Hz |
| Equipment: | Prism 4-fold rotating; iris; frost filter linear; zoom motor driven; focus motor-driven; animation wheel; shutter blades motor-driven |
| Color generation: | CMY+CTO color mixing for indefinite color variations |
| Color generation: | Color wheel with 8 dichroic filters plus open Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 30mm Image diameter 22mm Shake effect Gobo indexable Slot-in gobo system for easy gobo replacement Gobo wheel with static gobos, 8 gobos and open Shake effect |
| DMX channels: | 33; 35; 39 |

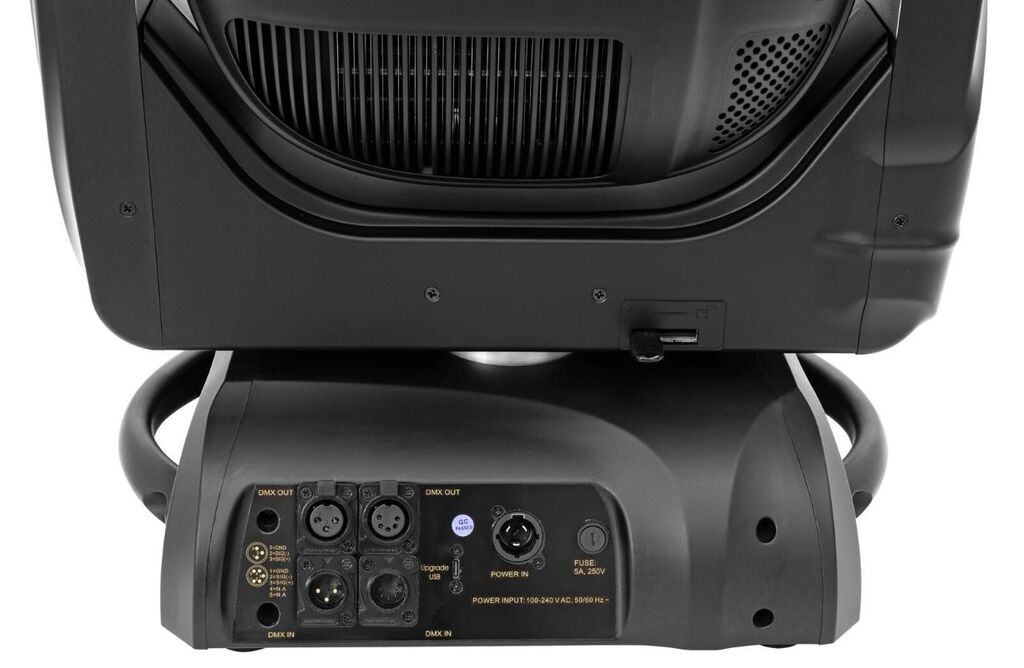

| DMX input: | 5-pin XLR (M) mounting version IP 3-pin XLR (M) mounting version IP |
| DMX output: | 5-pin XLR (F) mounting version IP 3-pin XLR (F) mounting version IP |
| Cooling: | 4 x temperature-controlled fan at the head 2 x temperature-controlled fan at the base |
| Control: | Stand-alone; master/slave function; DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); CRMX by LumenRadio upgradeable; W-DMX by wireless solution via USB (optional) |
| Projection: | Flicker-free |
| Beam angle: | 10° - 47° |
| Beam angle (1/2 peak): | 10 - 47° |
| Beam angle (1/10 peak): | 10 - 47° |
| Color rendering index (CRI): | 85 Ra via filter |
| Illuminance in Lux (lx): | Narrow cold white (CW) 3m: 69565 lx, 6m: 19180 lx Wide cold white (CW) 1m: 27924 lx, 3m: 3489 lx, 6m: 1000 lx |
| Housing color: | Black |
| Attachment system: | 2x omega bracket |
| Display type: | Multicolor LCD display battery buffering upgradeable |
| Dimensions: | Width: 44.2 cm Depth: 30.1 cm Height: 75.3 cm |
| Weight: | 37.15 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
