Fra:
Eurolite
Eurolite TMH-S200 CMY
7.120,00
m/Moms
(
5.696,00
u/Moms
)
-
Køb 2 eller flere til
6.960,00
( 5.568,00 )pr stk.
-
Køb 4 eller flere til
6.805,00
( 5.444,00 )pr stk.

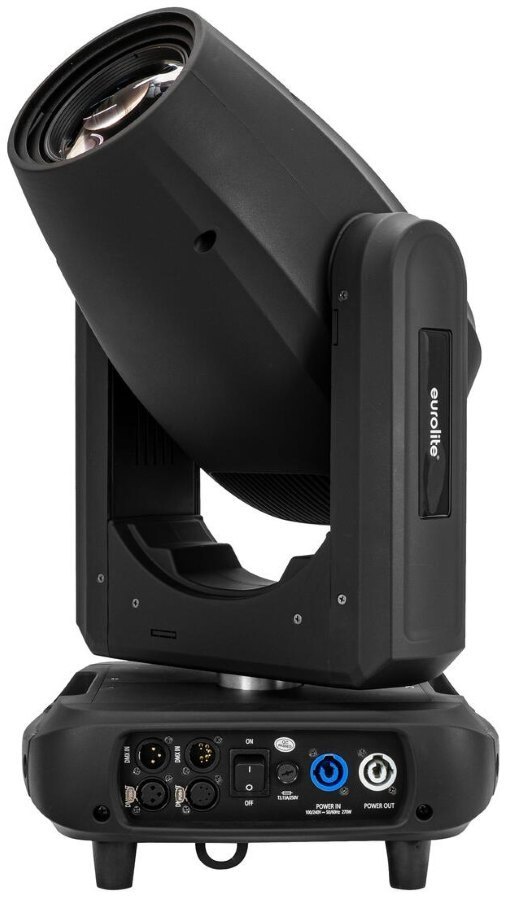

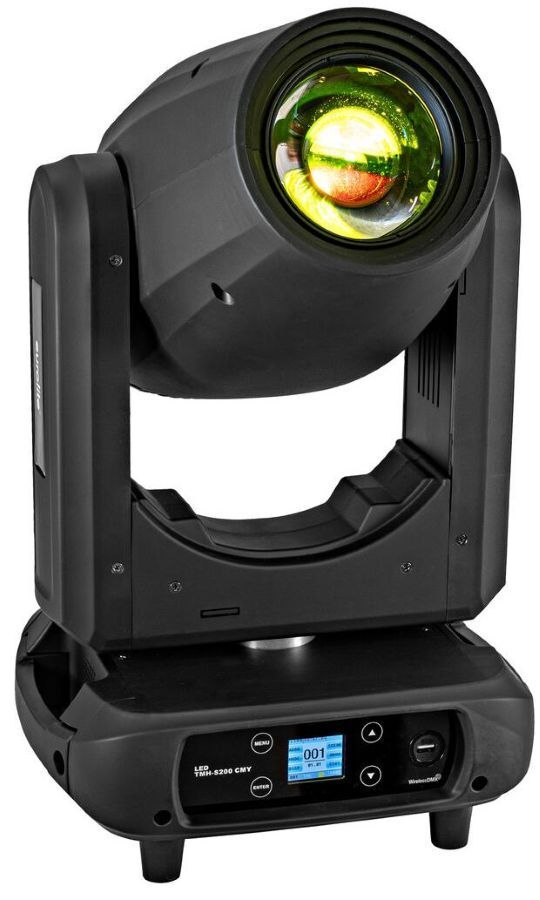

Universel anvendelig spot/beam/wash Moving Head med 200 W LED og CMY farvemix
Farvehjul, statiske og roterende gobo hjul med udskiftelige goboer. prismer frost filter og motoriseret forkus og motoriseret zoom
Powercon in og out
Lager:
På lager
På lager
Model/varenr.:
51786087
- With a beam angle of 4° - 32°
- Can be used as a beam, spot and wash
- CMY+CTO color mixing for indefinite color variations
- Color wheel with 6 dichroic filters plus open and CTO correction filter
half colors selectable - Half colors selectable
- Gobo wheel with rotating gobos, 7 gobos and open
slot-in gobo system for easy gobo replacement - Gobo wheel with static gobos, 9 gobos and open
shake effect - Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; prism 8-fold rotating; frost filter; zoom motor driven; focus motor-driven
- 1 LED 200 W COB (chip-on-board) cold white (CW)
- Flicker-free
- Positioning within 540° PAN, 220° TILT
- Auto position correction (feedback)
- Control via stand-alone; sound to light via microphone; DMX; master/slave function; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
- DMX fail mode (hold; zero values)
- Mains input and output for power linking up to 8 units
- For application areas such as: Stage; clubs/dancing school; wedding/gala/events; rental
- Application possibility: Standing; suspended
- Fixtures available for Light Captain; GDTF (GrandMA3)
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 270 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1.5 mm² H05VV-F |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 3.15 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 200 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 220° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 1 - 18 Hz |
| Equipment: | Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; prism 8-fold rotating; frost filter; zoom motor driven; focus motor-driven |
| Color generation: | Color wheel with 6 dichroic filters plus open and CTO correction filter Half colors selectable |
| Color generation: | CMY+CTO color mixing for indefinite color variations |
| Gobos: | Gobo wheel with static gobos, 9 gobos and open Shake effect Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 19.5mm Image diameter 10mm Slot-in gobo system for easy gobo replacement Shake effect Gobo indexable |
| DMX channels: | 22 |

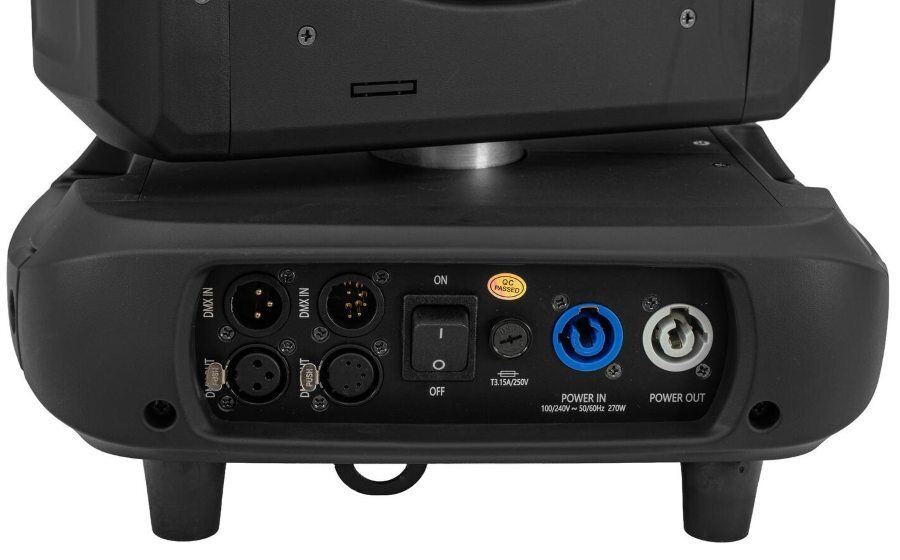

| DMX input: | 3-pin XLR (M) mounting version 5-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version 5-pin XLR (F) mounting version |
| Cooling: | 4 x temperature-controlled fan at the head 1 x temperature-controlled fan at the base |
| Control: | Stand-alone; sound to light via microphone; DMX; master/slave function; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional) |
| Fixtures available for: | Light Captain; GDTF (GrandMA3) |
| Projection: | Flicker-free |
| PWM frequency: | 23000 Hz |
| DMX fail mode: | Hold; zero values |
| Beam angle: | 4° - 32° |
| Beam angle (1/2 peak): | 4 - 32° |
| Beam angle (1/10 peak): | 4 - 32° |
| Illuminance in Lux (lx): | Narrow cold white (CW) 3m: 98862 lx, 6m: 25686 lx Wide cold white (CW) 1m: 31366 lx, 3m: 3246 lx, 6m: 812 lx |
| Lamp life: | 20000 h |
| Housing color: | Black |

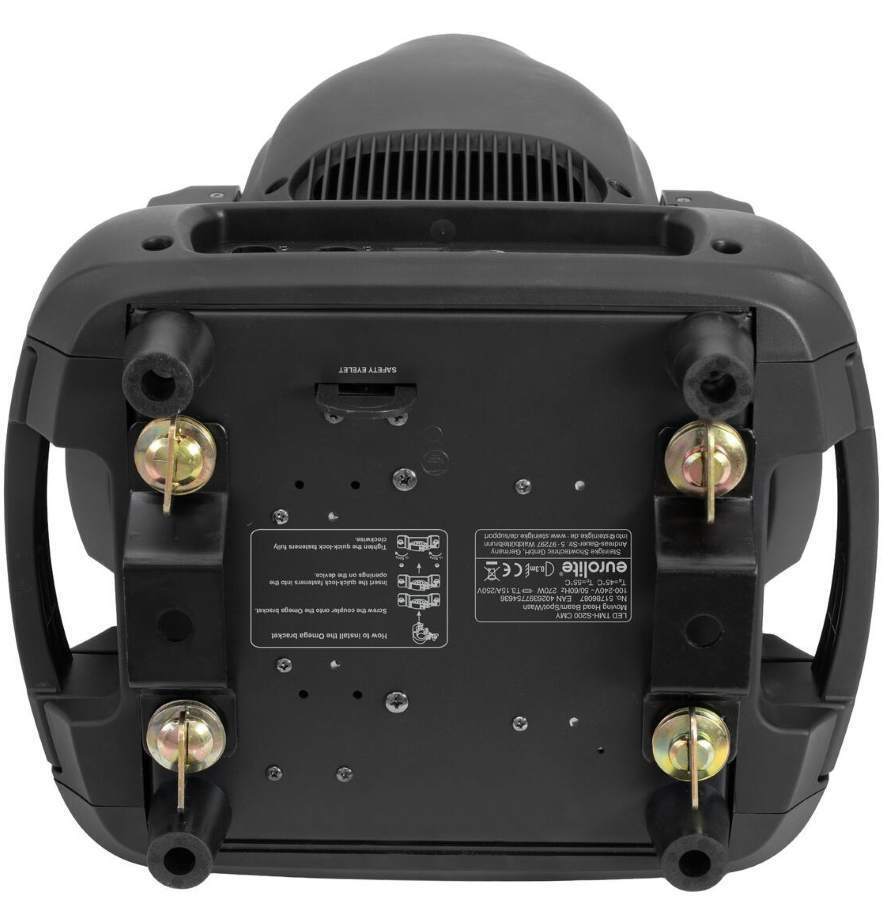

| Attachment system: | 2x omega bracket |

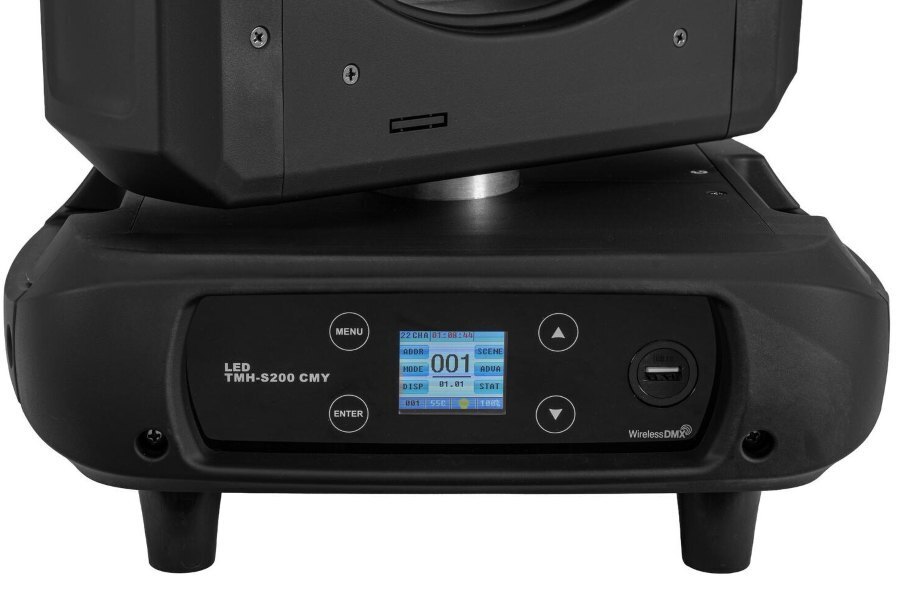

| Display type: | Multicolor LCD display |
| Control elements: | Power switch |
| Carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x rubber feet |
| Diameter mounting holes: | 2 x Ø12mm |
| Material: | Metal |
| Dimensions: | Width: 32.4 cm Depth: 25.5 cm Height: 57.0 cm |
| Weight: | 15.05 kg |
| Noise classification: | Class 2 (slight noise) depending on mode used |
