  4. Omnitronic XPA-1000 MK2
Fra: Omnitronic

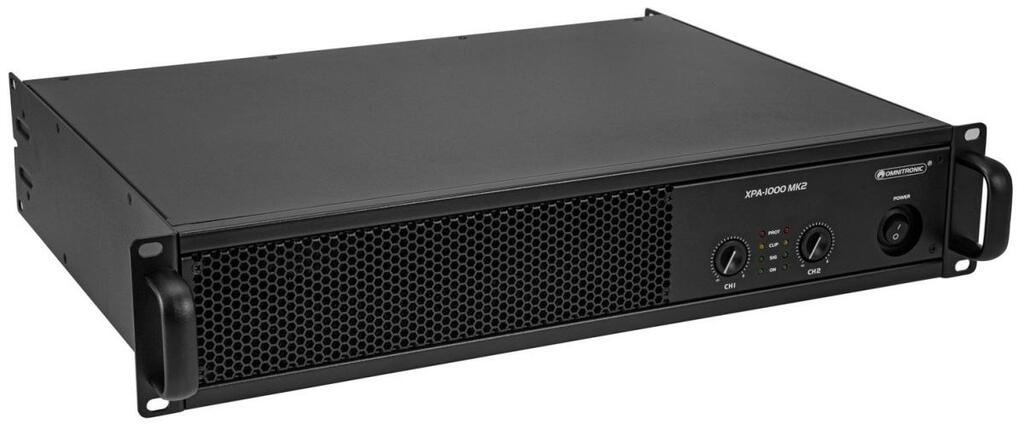

Omnitronic XPA-1000 MK2

2.320,00  m/Moms
( 1.856,00  u/Moms )

Bugetvenlig PA effektforstærker på 2 x 500W max.

Mere information

Lager: På lager På lager
Model/varenr.: 10451003
EAN kode: 4026397740950
  • 2 level controls
  • Signal inputs via XLR or RCA connectors
  • Speaker outputs via lockable speaker jacks and pairs of screw terminals
  • Class AB circuitry
  • Highly efficient air flow from front to rear
  • The device is cooled by temperature-controlled fan
  • (19") 48.3 cm rack installation possible 2 U

Package contents

  • 1 x amplifier, 1 x power cord, 1 x user manual, 4 x foot
Power supply: 230 V AC, 50 Hz
Power consumption: 710 W 1/8 power
IP classification: IP20
Protection class: Protection class I
Output power: 2 x 500 W RMS (4 ohms)
2 x 300 W RMS (8 ohms)
1000 W RMS bridged (8 ohms)
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug included
Device fuse: 5 x 20 mm, F 8 A fuse serviceable
Frequency range: 20 - 20000 Hz
S/N ratio: >95 dB
THD: <0,05 % at 1 kHz
Cooling: 2 x temperature-controlled fan , air flow from front to rear
Impedance: Input: 10 kOhm , unbal.
Input: 20 kOhm , bal.
Housing color: Black
Circuitry: Class AB
Slew rate: >20 V/µs
Damping factor: >200
Control elements: Power switch, level control per channel, mode switch (stereo/parallel/bridged)
Controls: Softstart; DC voltage; VHF; short-circuit; limiter; overheat
Status LED: Power, signal, clip, protect
Connections: Input: line via 2 x 3-pin XLR (F) mounting version
Input: line via stereo RCA
Output: speaker via 2 x speaker built-in socket (F)
Output: speaker via screw terminal
Input sensitivity: 1 V
Housing design: (19") 48.3 cm rack installation possible 2 U
Mounting depth: 33,2 cm
Dimensions: Width: 48,3 cm
Depth: 36,8 cm
Height: 8,8 cm
Weight: 10,40 kg
