Fra:
Omnitronic

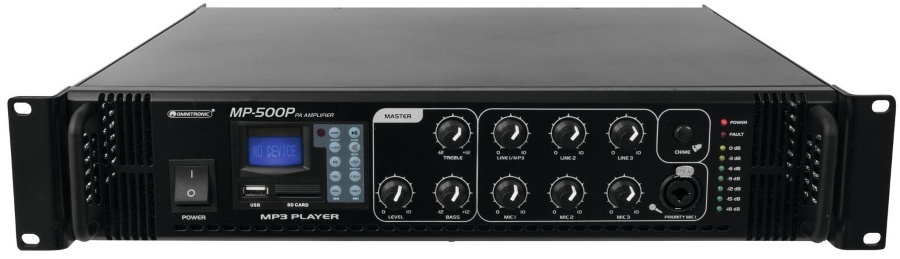

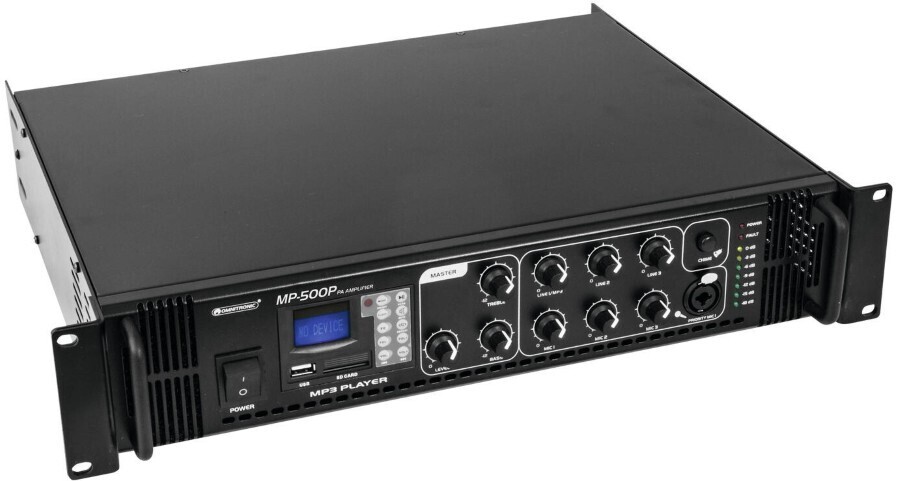

Omnitronic MP-500P mixer-forstærker
3.135,00
m/Moms
(
2.508,00
u/Moms
)
Mixer-forstærker til 100V systemer med MP3 afspiller og fjernbetjening. Til 19" rack montering
500W udgangseffekt. Tilslutning til 3 mikrofoner deraf 1 på forsiden
Lager:
På lager
På lager
Model/varenr.:
80709650
- SD card slot and USB port
- Folder navigation and repeat functions (1, All)
- 3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- (19") 48.3 cm rack installation 2 U
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
audio player
- Control via IR remote control
- LCD display
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1000.00 W |
| Protection class: | Protection class I |
| Output power: | 500 W RMS |
| Power connection: | Fixed power supply cord with safety plug |
| Device fuse: | 5 x 20 mm, T 6.3 A fuse replaceable |
| Frequency range: | 80 - 14000 Hz |
| S/N ratio: | >75 dB microphone >85 dB line |
| THD: | <0.5 % at 1 kHz |
| Cooling: | Temperature-controlled fan , air flow from front to rear |
| Impedance: | 4-16 ohms; public address systems 100V; Public address systems 70V |
| Housing color: | Black |
| Circuitry: | Class AB |
| Control elements: | Power switch, Master control, level control per channel, tone control, audio player |
| Controls: | Power on/off transient; Overvoltage; short-circuit |
| Status LED: | Power, fault, level meter |

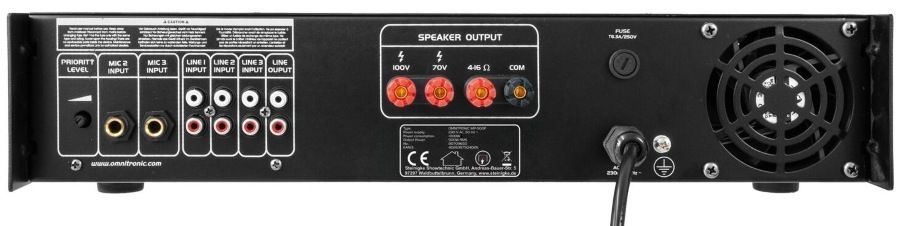

| Connections: | Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: microphone via 2 x 6.3 mm plug (unbal.) Input: line via 3 x stereo RCA 0.3 V Output: line via 1 x stereo RCA 0.3 V Output: speaker via screw terminal |
| Equalizer: | Master: 1 x 2-band tone control mono |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48.3 cm Depth: 40 cm Height: 8.9 cm |
| Weight: | 14.55 kg |
