Neutrik
PowerCON TRUE1 chassis-stik duplex
61,00
m/Moms
(
48,80
u/Moms
)

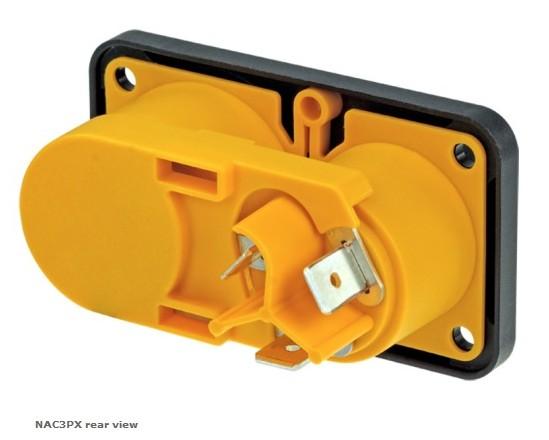

NAC3PX PowerCon TRUE1, 3-polet duplex chassis stik/fatning, 16A
Lager:
Forventet leveringstid er 2-3 dag(e)
Model/varenr.:
NAC3PX
NAC3PX powerCON er et 16A låsestik. Det gør apparatkoblere overflødige og garanterer en sikker strømforbindelse.
Contact resistance: ≤ 3 mΩ
Dielectric strength: 4 kVdc / 2.8 kVac
Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts: 2 + PE
Rated current per contact: 16 A rms (USA: 20 A)
Rated voltage: 250 V ac
Lifetime: > 5000 mating cycles
Wiresize: 2.5 mm²
Wiresize: 12 AWG
Contact plating: 2 µm Ag
Locking element: Stainless steel
Shell: Polyamide (PA 6.6)
Contacts: Spring Copper (CuSn0.2)
Flammability: UL 94 V-0
Temperature range: -30 °C - +80 °C
